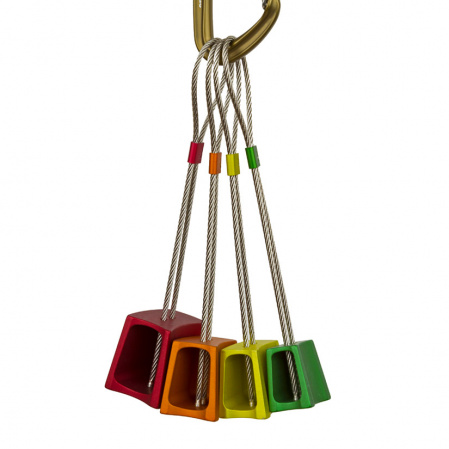

Big Nuts
Big Nuts
Everyone’s favorite passive protection in larger sizes. A light, economical way to protect wide cracks with asymmetric taper for greater stability in flaring placements and straight-sided taper makes it easy to judge placement quality.
- Sizes: #1 - 4 available individually or as a full set
- Hand built, inspected and individually proof tested in Bend, Oregon
| Size | Range | Strength | Weight |
|---|---|---|---|
| 1 Green |
1.13 - 1.38" 28.7 - 35.0 mm |
2250 lbf 10 kN |
2.0 oz. 58 g |
| 2 Yellow |
1.30 - 1.59" 33.0 - 40.3 mm |
2250 lbf 10 kN |
2.5 oz. 72 g |
| 3 Orange |
1.50 - 1.83" 38.1- 46.4 mm |
2250 lbf 10 kN |
3.2 oz. 92 g |
| 4 Red |
1.73 - 2.10" 43.9 - 53.3 mm |
2250 lbf 10 kN |
3.7 oz. 106 g |
*Dimensions are depth and width at the top (widest part) of the nut.
How to Use
Passive protection manual
Passive protection manual
