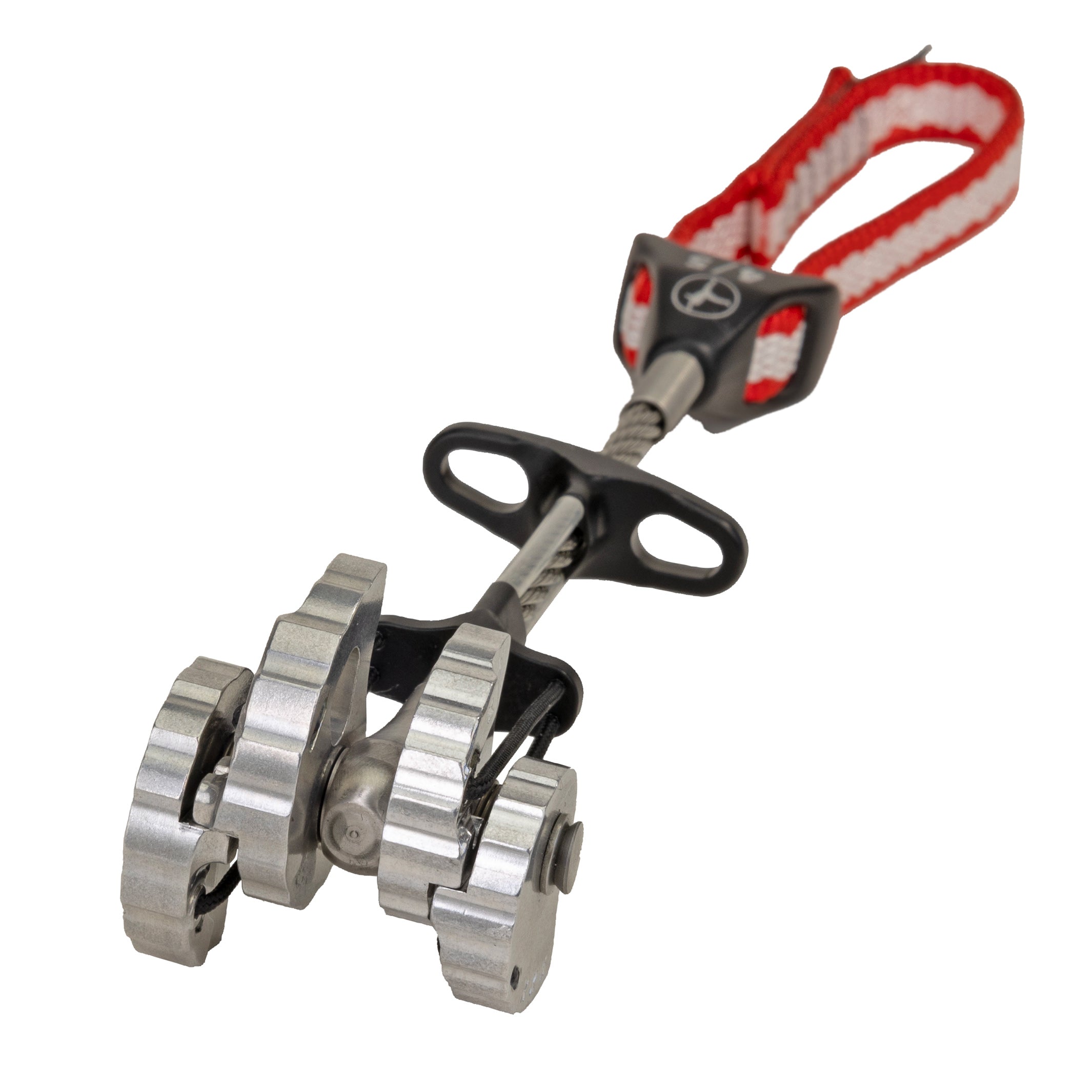

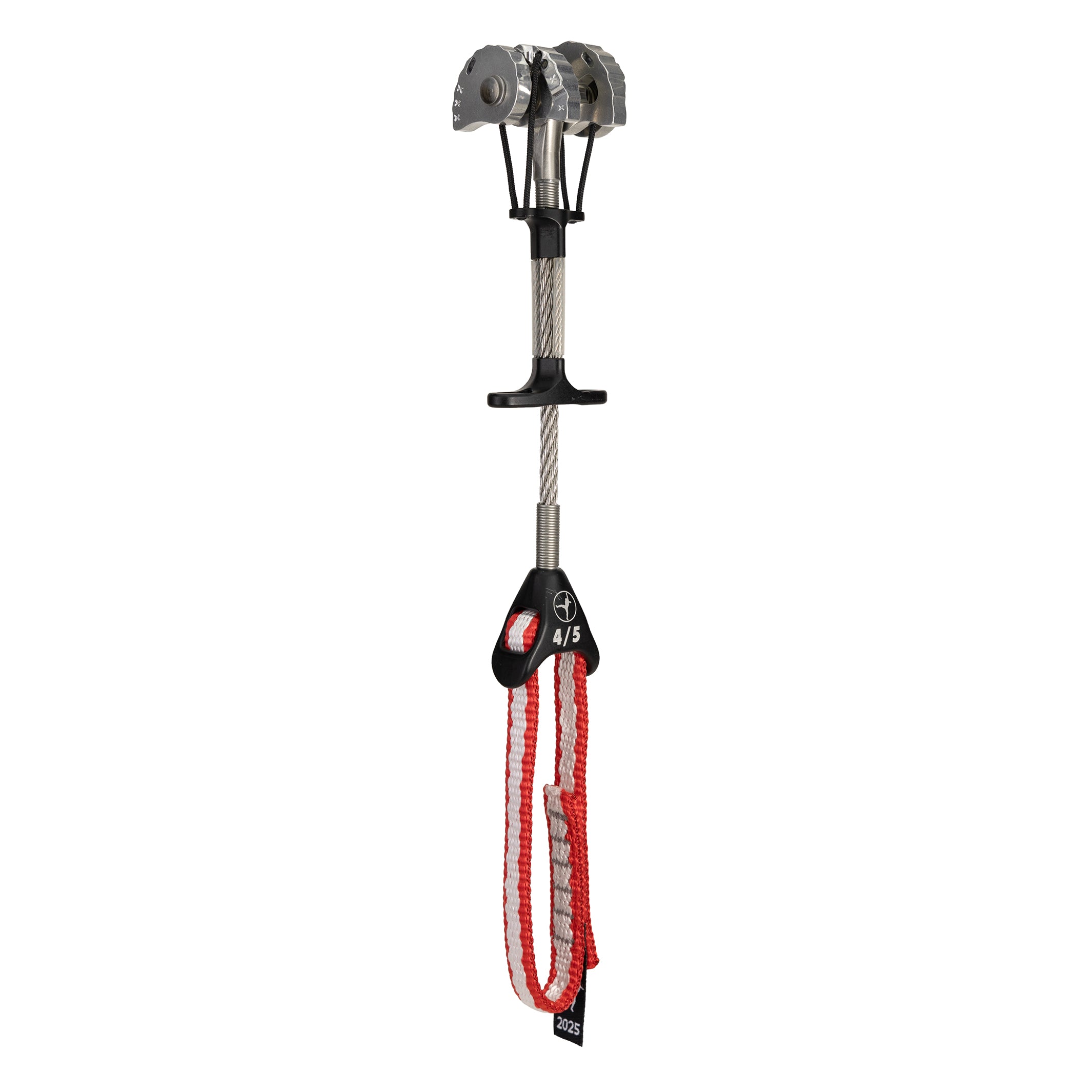

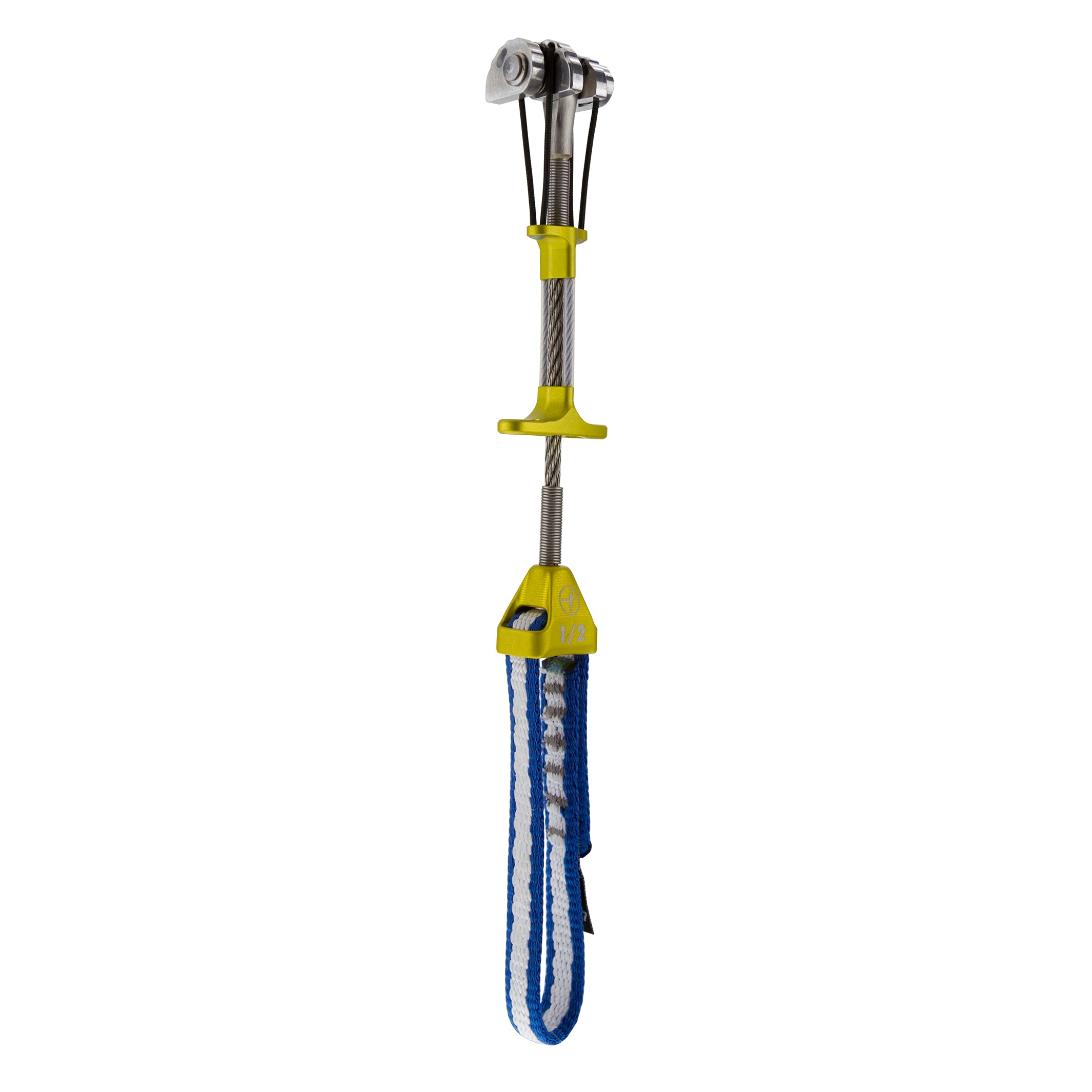

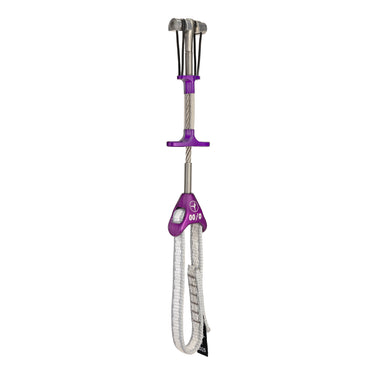

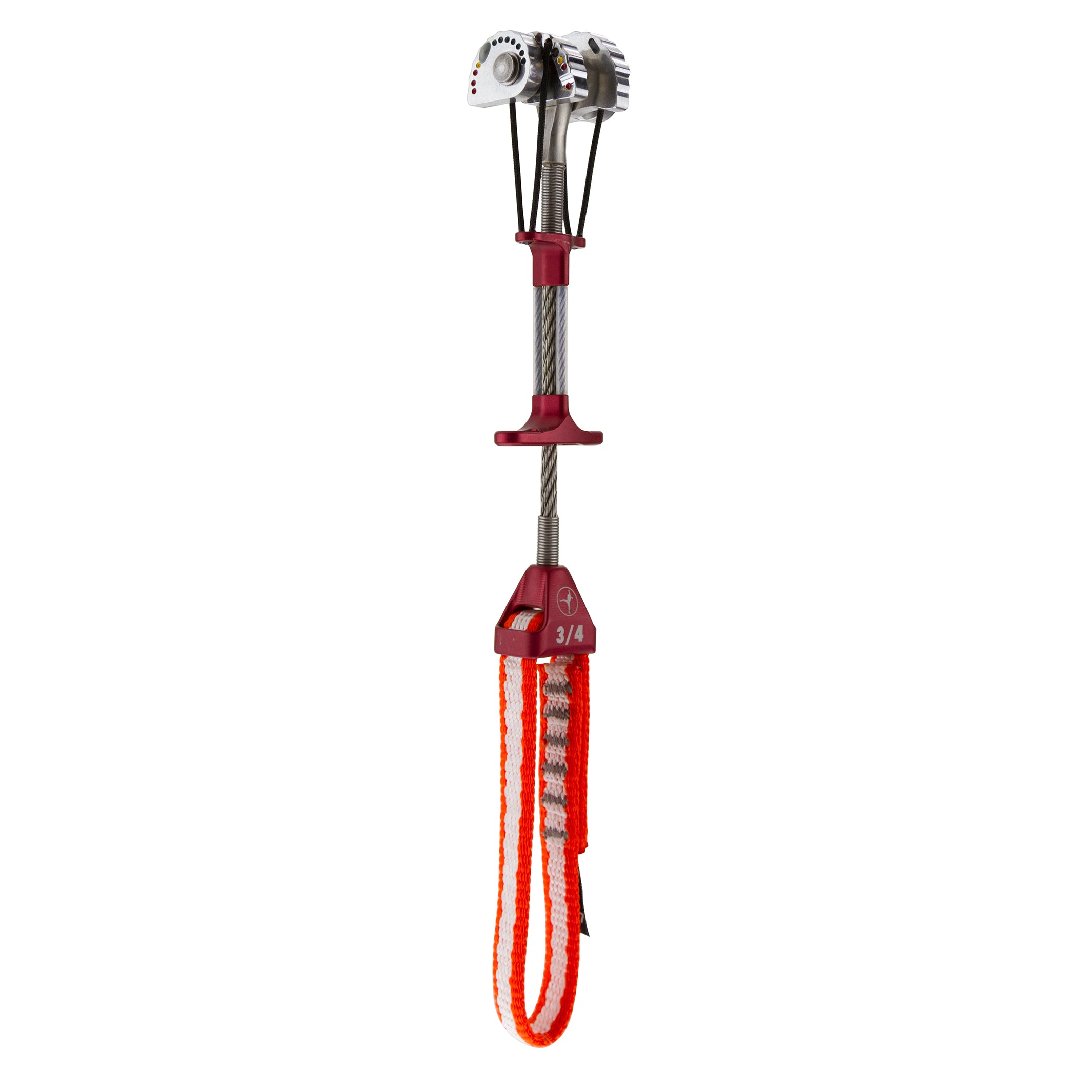

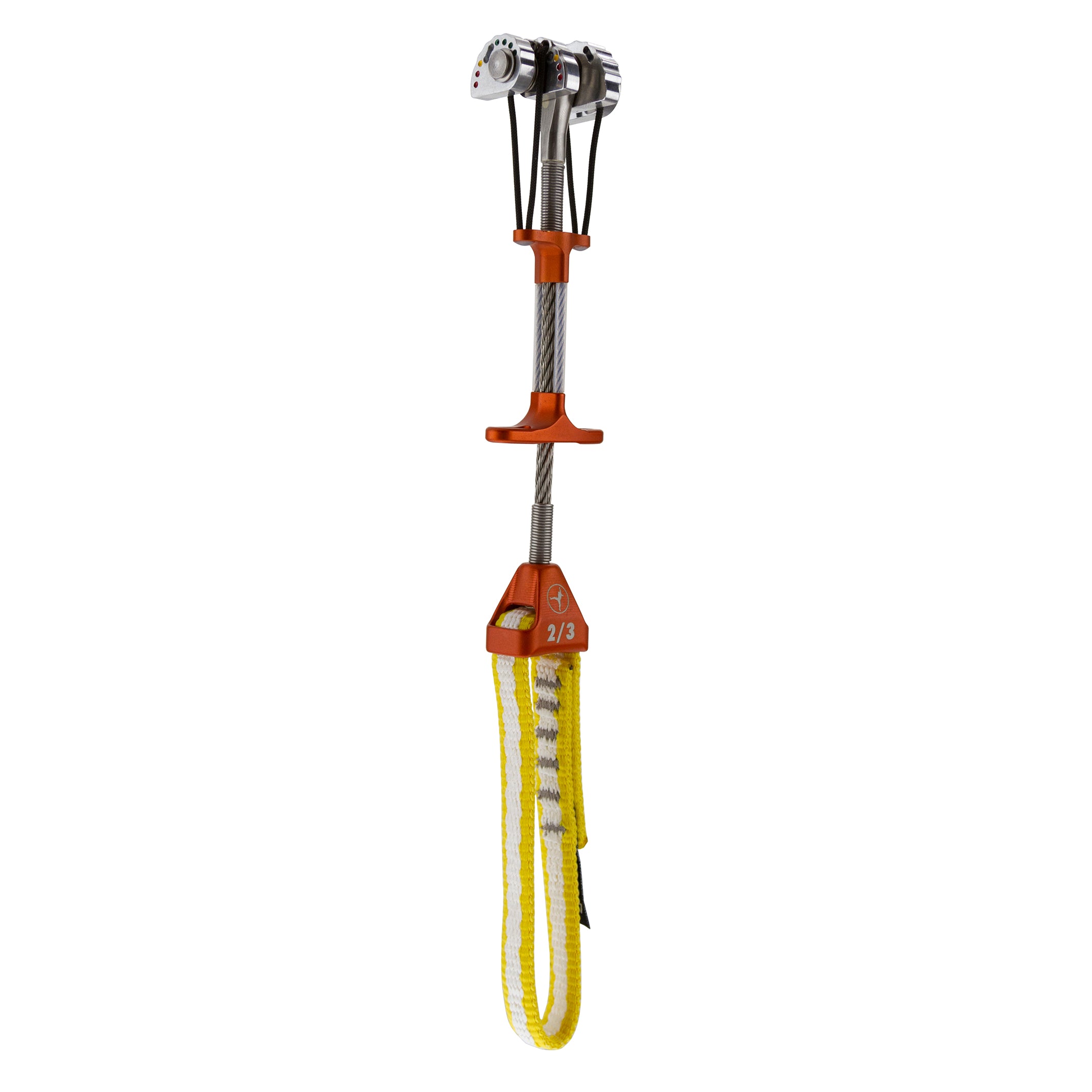

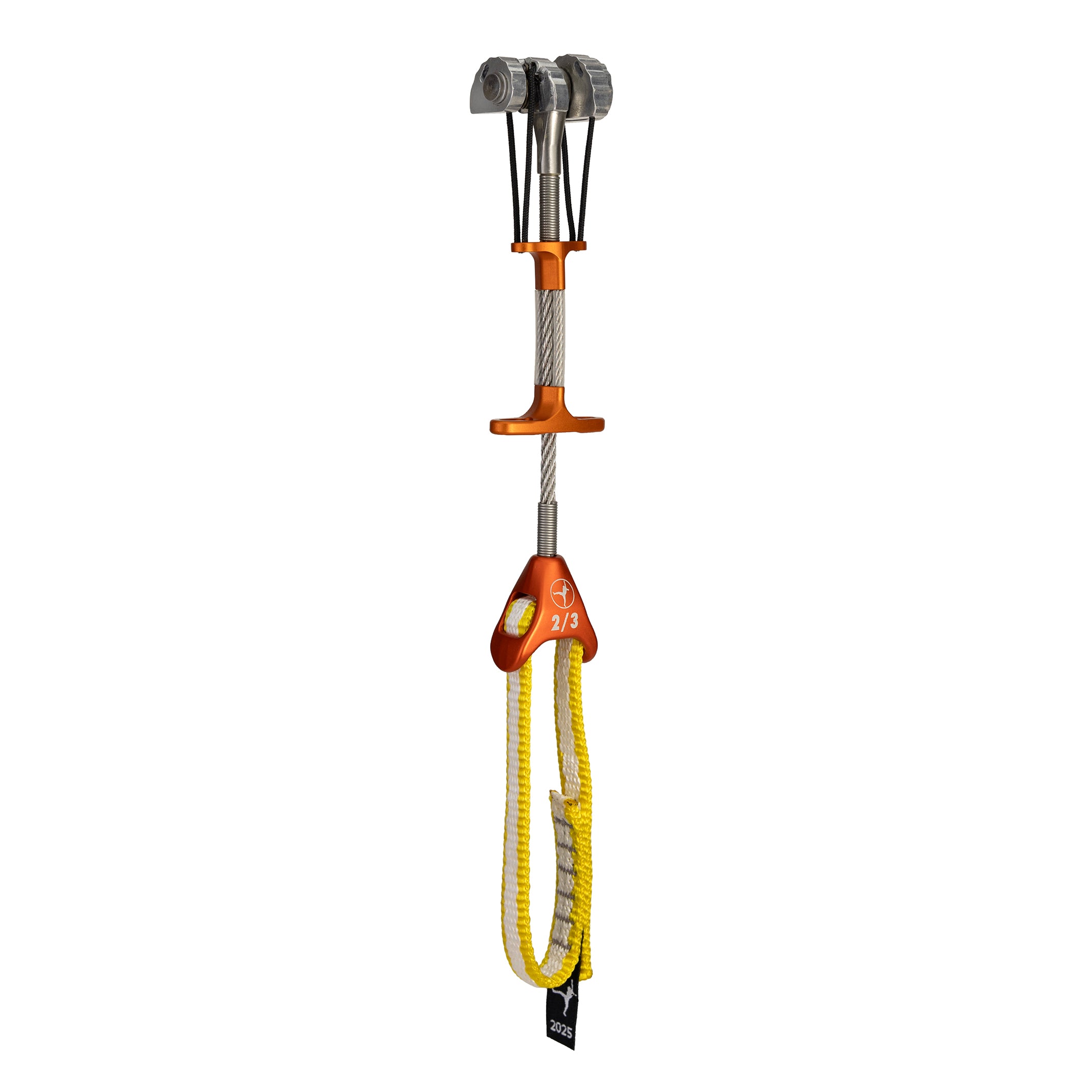

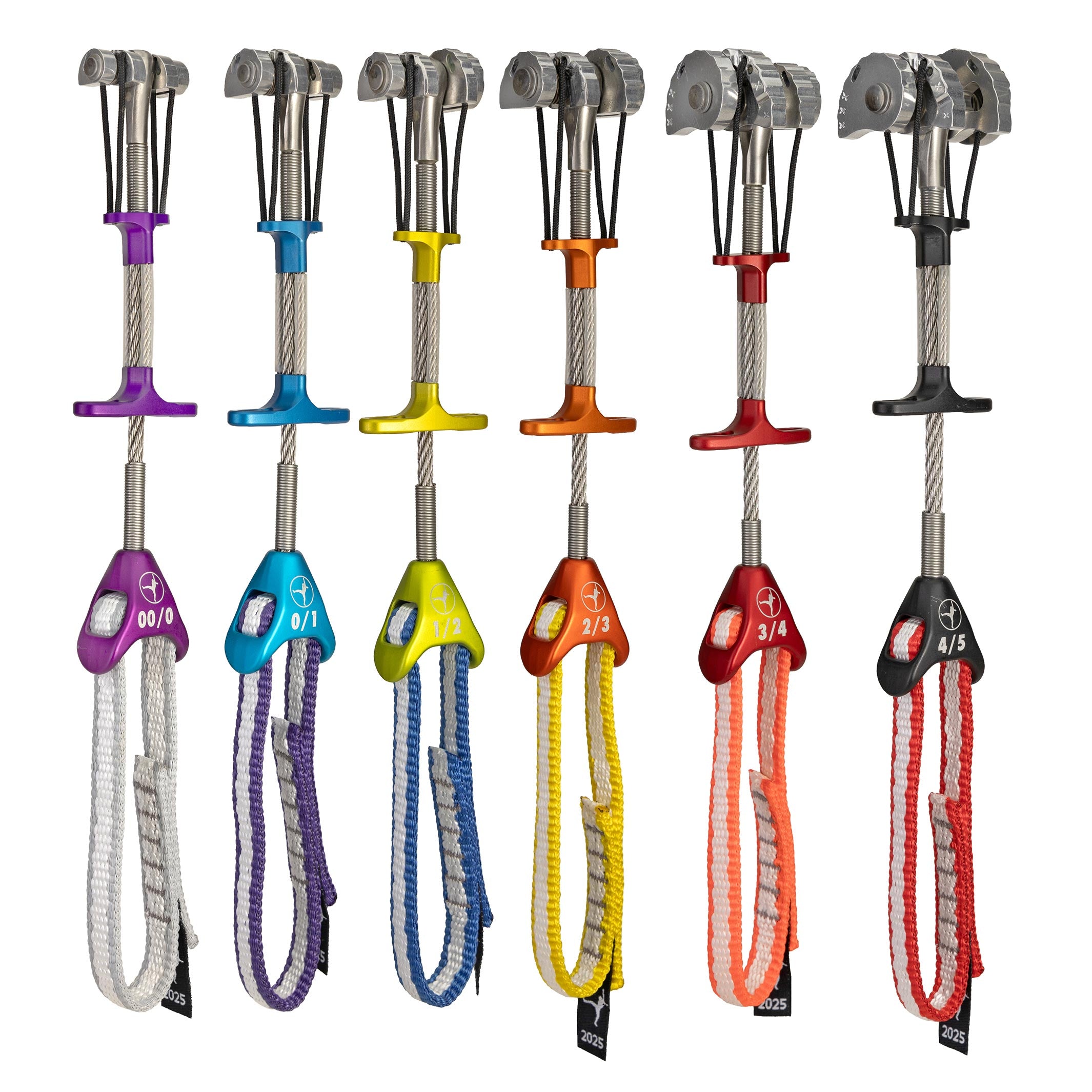

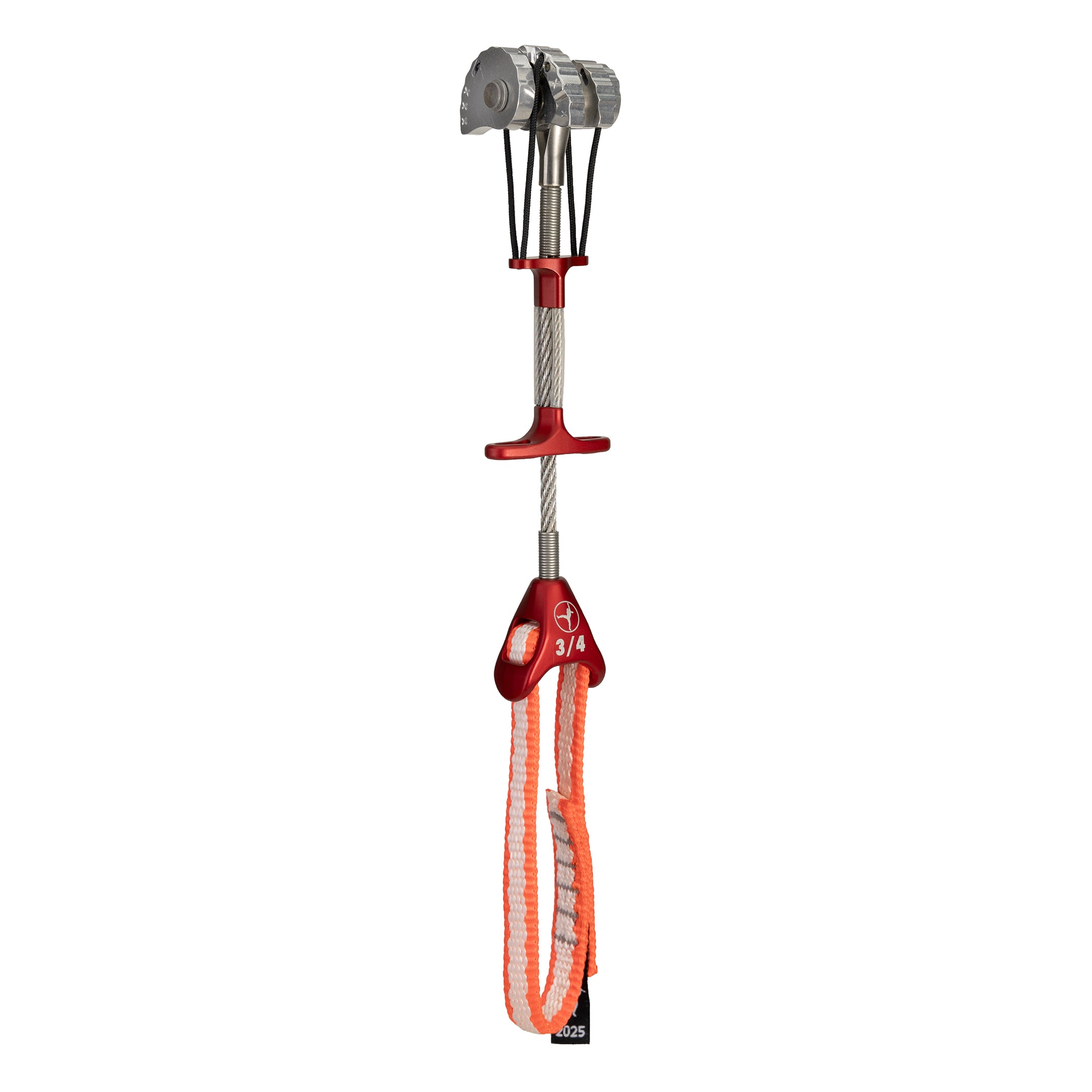

Ultralight Offset Master Cam

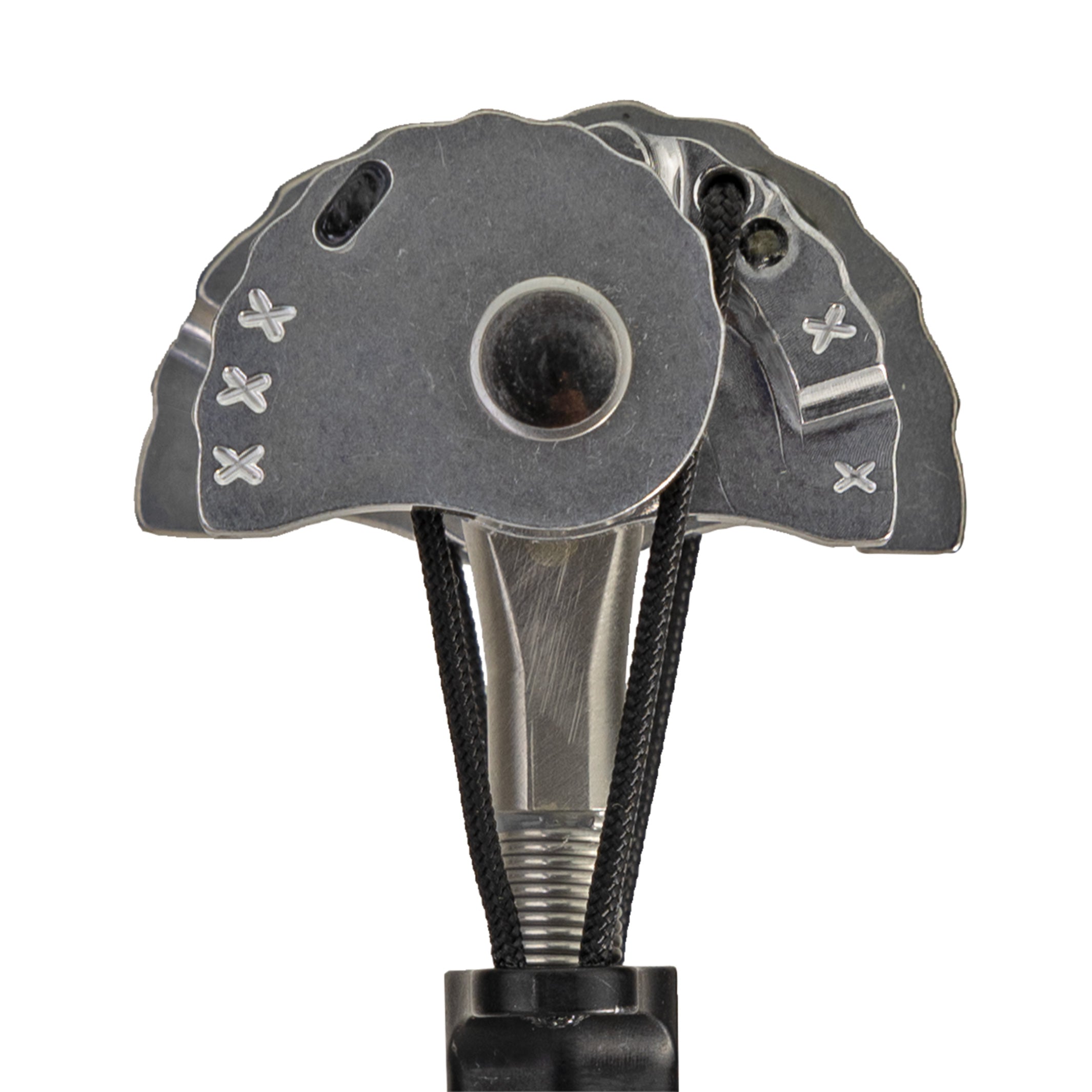

The Ultralight Offset Master Cam shares all the same features as our Ultralight Master Cam but is a specialized design that has of two smaller lobes and two larger lobes to fit flared cracks and pin scar placements. CNC machined for much greater precision than stamped or extruded cams.
Specs & Details
Manuals, Certifications & Care
Cam Range Chart
Placement is secure, but difficult to place and remove.
Placement is secure, and easy to place and remove.
Placement is secure, but may move to an insecure position. A larger cam is usually better.
Placement is not secure. A larger cam should be used.
| size | color | range in inches | range in millimeters | ||||
| min. range | usable range | max. range | min. range | usable range | max. range | ||
| *00 | grey | 0.33 | 0.34 - 0.47 | 0.55 | 8.3 | 8.5 - 12.0 | 13.9 |
| *0 | purple | 0.38 | 0.39 - 0.59 | 0.61 | 9.6 | 10.0 - 15.0 | 15.4 |
| *1 | blue | 0.48 | 0.49 - 0.71 | 0.76 | 12.1 | 12.5 - 18.0 | 19.3 |
| 2 | yellow | 0.61 | 0.62 - 0.89 | 0.95 | 15.4 | 15.5 - 22.5 | 24.1 |
| 3 | orange | 0.73 | 0.74 - 1.04 | 1.13 | 18.5 | 18.5 - 26.5 | 28.7 |
| 4 | red | 0.92 | 0.93 - 1.32 | 1.40 | 23.3 | 23.5 - 33.5 | 35.5 |
| 5 | black | 1.10 | 1.11 - 1.54 | 1.70 | 27.9 | 28.1 - 39.1 | 43.1 |
| 6 | green | 1.30 | 1.31 - 1.85 | 2.05 | 33.0 | 33.2 - 46.9 | 52.0 |
| 7 | light blue | 1.58 | 1.59 - 2.26 | 2.50 | 40.1 | 40.3 - 57.4 | 63.5 |
| 8 | light purple | 1.92 | 1.93 - 2.80 | 3.05 | 48.7 | 49.0 - 71.1 | 77.4 |
| Small | grey | 1.62 | 1.65 - 2.50 | 2.75 | 41.1 | 41.9 - 63.5 | 69.8 |
| Medium | maroon | 2.11 | 2.14 - 3.35 | 3.65 | 53.5 | 54.3 - 85.0 | 92.7 |
| Large | dark blue | 2.65 | 2.68 - 4.15 | 4.65 | 67.3 | 68.0 - 105.4 | 118.1 |
| *Sizes #00-1 does not have Range Finder | |||||||
